该产品具有0-5 VDC输出，3到5 K PSI，硅传感器。

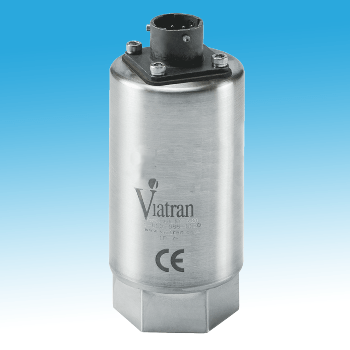

Viatran's 24Ais one of the most versatile pressure transducers ideal for industrial applications. The24Ais capable of measuring from 3 PSI to 5000 PSI (0.2 to 345 bar) with standard linearity of ≤±0.25% FSO. Enhanced linearity of ±0.15% or ±0.10% FSO are available as options. The Model 24A has an 0 - 5 Vdc Output Signal as standard. (Options available)
Features
- Low pressure applications
- High accuracy
- RoHS compliant
- RapidShip - 2 day turnaround
- 许多可用的选项
- All stainless steel construction
- Shunt calibration circuit option
Typical Applications:
- Hydraulic
- Compressors and pumps
- Rolling mills
- Die casting
- Engine test stands
- Production test stands
Performance
| . |
. |
| Full Scale Pressure Ranges |
0-3到5000 psig（> 500 psi的psis）（0.2 thru 345 bar）
0-15 thru 0-5000 PSIA (0-1.0 thru 0-345 bar)
0-15 PSIV (0-1.03 BarV) |
| 非线性（最合适的直线） |
≤±0.25% FSO |
| Hysteresis & Repeatability |
≤±0.10% FSO |
| 全尺度输出（FSO） |
5 Vdc at 70 °F (21 °C) ±1.0% FSO standard |
| 解析度 |
Infinite |
| Long Term Stability |
≤±0.3% FSO per 6 months |
| Compensated Temperature Range |
70 °F to 170 °F (21 °C to 77 °C) |
| Process Media Temperature Range |
-40 °F to 250 °F (-40 °C to 121 °C) |
| Ambient Operating Temperature Range |
-40 °F to 185 °F (-40 °C to 85 °C) |
| 存储温度限制 |
-40 °F to 250 °F (-40 °C to 121 °C) |
| Temperature Effect on Zero |
≤±2.0% FSO per 100 °F |
| Temperature Effect on Span |
≤±2.0% FSO per 100 °F |
电气
| . |
. |
| 电源电压 |
8至30 VDC在3.5 Ma名义，5 mA最大
(12 to 30 Vdc for 10 Vdc output option) |
| Power Supply Regulation |
≤±0.01% FSO per volt change over the supply voltage range |
| Output Signal |
0 - 5 Vdc standard (see options) |
| Zero Adjustment |
±5% FSO min |
| Circuit Protection |
Input polarity may be reversed. Output may be short-circuited indefinitely |
Over voltage protection to 1000 volts according to EN61000-4-5 |
| Insulation Resistance |
<5 nSec to case ground |
| Response Time |
<2 mSec to reach 90% of full scale |
| RFI / EMI Suppression |
CE EMC符合IEC EN 61326。
CE marked |
| 电气Connection |
Bendix PT02E-10-6P, mates PT06E-10-6S (SR) |
| Pin Outs |
Pin A + Power
引脚B-电源
引脚C +信号
Pin D - Signal
Pin E No connection
Pin F No connection
Shell Ground |
亚博网站下载建筑材料
| . |
. |
| Wetted Parts |
316 Stainless Steel |
| Housing |
304L SS |
| Weight |
10 oz (283 g) |
| Identification |
Pressure sensitive label |
Mechanical
| . |
. |
| 压力连接 |
1/4" - 18 NPT female |
| Proof Pressure |
≤500 PSI (35 bar) |
3 times range or 1,200 PSI (80 bar) max |
| >500 PSI (35 bar) |
3 times range or 9,000 PSI (620 bar) max |
| Burst Pressure |
≤500 PSI (35 bar) |
5 times range or 2,400 PSI (170 bar) max |
| >500 PSI (35 bar) |
5 times range or 10,000 PSI (700 bar) max |
| Pressure Cavity Volume |
≤500 PSI (35 bar) |
1.5 ml |
| >500 PSI (35 bar) |
1.5 ml |
| Mounting |
May be supported by process piping |
Options
| . |
. |
| BF |
(K)PTIH-10-6P |
| BG |
DIN 43650 |
| BL |
WK6-32S |
| BN |
（k）PTIH-8-4P |
| BQ |
(K)PT02H-10-6P |
| BR |
CF3102E-14S-6P |
| DA |
Isolated shunt |
| DC |
Extended temperature operation:
-40 °F to 170 °F (-40 °C to 77 °C)] |
| DG |
Improved temp performance to 0.005% FSO per 1 °F |
| DH |
特殊范围 |
| DK |
Special shunt calibration setting |
| DM |
Modified full scale output |
| DN |
Improved non-linearity |
| DQ |
Cleaning for oxygen service |
| EA |
Special calibration run |
| ED |
Extra improved linearity (±0.10% FSO) |
| EH |
Extended Hot temperature operation (70 °F to 185 °F) |
| LR |
永久激光标记 |
| LV |
Externally powered,Optically Isolated Shunt Cal |
| NH |
Customer specified identification |
| PW |
1/8 DIN digital indicator |
| TW |
GOST-R |
| Y() |
Multiple pressure ports available. Consult factory |
| ZU |
直接电缆（175°F最高温度）（79°C） |
Note:
Application of some available options may affect standard performance.
Consult your Viatran representative for details.
